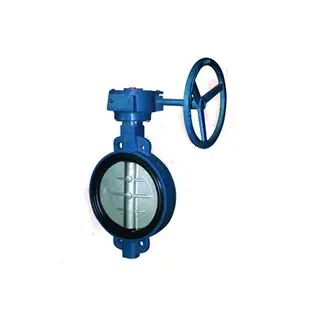

Double Offset Butterfly Valve, API 609, AWWA C504, 2-120 IN

Key Specifications / Features

Model No.: LV 23 EBV 01 Hits: 7

A double offset butterfly valve is a type of control valve that is commonly used in pipelines for regulating the flow of fluids. It has a disc that rotates around its axis and controls the flow of fluid by opening or closing the valve.

Request a quote Share

Tags: API 609 Butterfly Valve, 2 Inch Butterfly Valve, 120 Inch Butterfly Valve, DN500 Butterfly Valve, DN50 Butterfly Valve, Class 150 LB Butterfly Valve, PN20 Butterfly Valve, PN50 Butterfly Valve, Class 300 LB Butterfly Valve, Carbon Steel Butterfly Valve, Stainless Steel Butterfly Valve, Alloy Steel Butterfly Valve, BW Ends Butterfly Valve,

Previous: Sanitary Butterfly Valve, 1.4404, 1.4301, SS 304, SS 316L
Next: Triple Offset Butterfly Valve, API 609, 2-120 Inch

Detail Information

Double Offset Butterfly Valve

Specification:
1. Design standard: API 609, AWWA C504
2. Body material: Carbon steel, Stainless steel, duplex stainless steel, Alloy steel, Nickel alloy
3. Pressure range: CLASS 150-300 LB
4. Nominal diameter: NPS 2-120 Inch
5. End connection: Flange, Wafer, Lug, BW
6. Mode of operation: Lever, Gearbox, Electric, Pneumatic, hydraulic device, Pneumatic-hydraulic device

Product features

1. Compact design, less weight, easy for repair and installation
2. Small operating torque
3. Flow characteristic is almost in a straight line, good regulating function
4. Independent Sealing ring design, easy for replacement
5. Bidirectional seals can be chosen
