Cast Iron Wafer Check Valve, DN450, PN16, EpoxyHome >Products >Check Valve >Wafer Check Valve

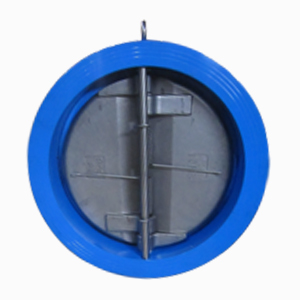

Cast Iron Wafer Check Valve, DN450, PN16, Epoxy
Cast Iron Wafer Check Valve, DN450, PN16, Epoxy
Key Specifications / Features
 Model No.: LV 14 WCV 03    Hits: 710
China Cast Iron Wafer Check Valve: Wafer Type Check Valves, Cast Iron Body, SS304 Disc, Shaft & Spring, NBR Seat, DN450 (18 Inch), PN16, Epoxy Coated.
Request a quoteShare
Tags: Wafer Ends, Cast Iron, 18 Inch, DN450, PN16, SS304 Shaft, SS304 Spring, SS304 Disc, NBR Seat,
Previous: API Carbon Steel Wafer Check Valve, DN50-1200
Next: DIN 3202 Dual Plate Wafer Check Valve, PN10, PN16

Detail Information

Body Material: Cast Iron.
Disc Material: SS304.
Shaft Material: SS304.
Spring Material: SS304.
Seat Material: NBR.
Size: DN450 (18 Inch).
Pressure: PN16.
Face to Face: 152mm.
Inside & Outside epoxy coated with minium thickness of 200 microns.

Similar Products

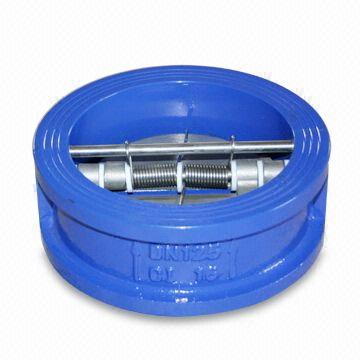

DIN 3202 Dual Plate Wafer Check Valve, PN10, PN16
DIN 3202 Dual Plate Wafer Check Valve, PN10, PN16 ASTM A351 Butterfly Valve, Wafer, Pneumatic

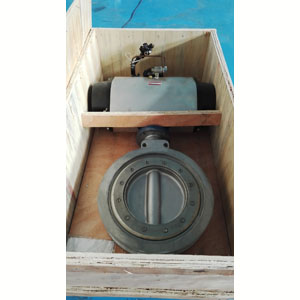

ASTM A351 Butterfly Valve, Wafer, Pneumatic EPDM Seated Wafer Check Valve, Double Disk

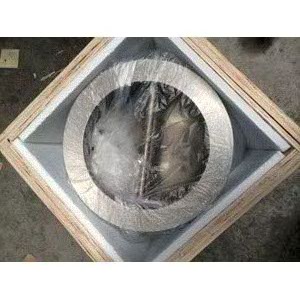

EPDM Seated Wafer Check Valve, Double Disk Cast Iron Butterfly Valve, Wafer CL150, 12IN

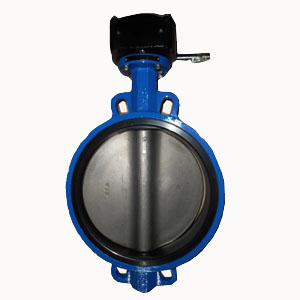

Cast Iron Butterfly Valve, Wafer CL150, 12IN A216 Alloy Steel Gate Valve, 18 Inch, 900LB, BW
A216 Alloy Steel Gate Valve, 18 Inch, 900LB, BW EPDM Seated Wafer Butterfly Valve, DIN, 8 Inch

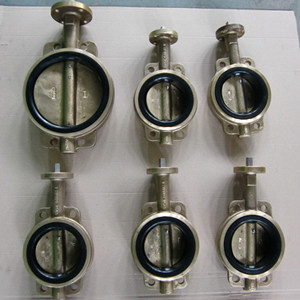

EPDM Seated Wafer Butterfly Valve, DIN, 8 Inch
