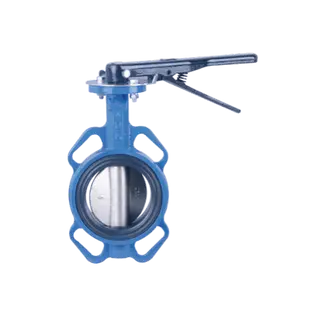

ASTM A536 65-45-12 Butterfly Valve, MSS SP-67, 2-12 Inch

Name: ASTM A536 65-45-12 Butterfly Valve, MSS SP-67, 2-12 Inch
SKU: lv-btv-20241026-02
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No.: LV-BTV-20241026-02 Hits: 1

The MSS SP-67 Butterfly Valve, produced in our factory, adheres to MSS SP-67 standards and is constructed from Ductile Iron ASTM A536 Grade 65-45-12. These valves are available in sizes ranging from 2 to 12 inches and can handle pressure ratings between 175 and 300 PSI. Designed with grooved ends for secure connections, they are coated with fusion-bonded epoxy to provide excellent corrosion resistance and enhance overall durability.

Request a quote Share

Tags: ASTM A536 65-45-12 Butterfly Valve, MSS SP-67 Butterfly Valve,

Previous: API 609 Butterfly Valves, ASTM A536 65-45-12, 2-32 IN, Flanged
Next: API 609 Concentric Butterfly Valves, A216 WCB, 4 IN, 150 LB

Detail Information

MSS SP-67 Butterfly Valves, ASTM A536 65-45-12 Body, Grooved Ends.

Product Item: MSS SP-67 Grooved Butterfly Valve
Body Material: Ductile Iron ASTM A536 Grade 65-45-12
Design Standard: MSS SP-67
Size Range: 2 Inch - 12 Inch
Working Pressure: 300 PSI, 175 PSI, 200 PSI and 250 PSI available upon Request
Top Flange Standard: ISO 5211
Temperature Range: 0°C to 80°C
Connection Ends: Groove to AWWA C606
Coating: Fusion Bonded Epoxy Coating following ANSI/AWWA C550 or Painting upon Request
Stem Drive by Keys, Parallel or Diagonal Square or Flat Head

ASTM A536 65-45-12 Butterfly Valve, MSS SP-67, 2-12 Inch
