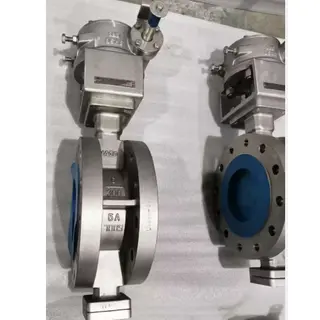

API 609 Eccentric Butterfly Valve, ASTM A995 5A, 6, 8 Inch
Key Specifications / Features
 Model No.: LV 23 EBV 03    Hits: 22
API 609 is a specification developed by the American Petroleum Institute (API) for "Butterfly Valves: Double Flanged, Lug- and Wafer-Type". This specification covers the design, materials, testing, and performance of butterfly valves used in the petroleum, petrochemical, and natural gas industries. An eccentric butterfly valve is a type of butterfly valve that has the stem offset from the center of the disc. This design allows for a more efficient flow of fluid through the valve, as well as better sealing performance. The API 609 specification covers eccentric butterfly valves in addition to other types of butterfly valves.

Detail Information

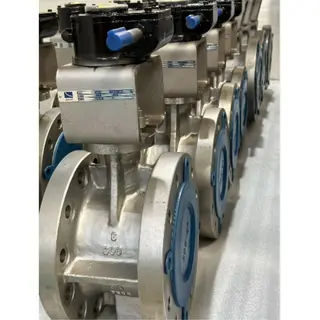

API 609 Standard Eccentric Disc Triple Offset Type Butterfly Valve, Body & Disc Materials: ASTM A995 Gr. 5A, 300# Calss Rating, Flanged Ends, 6 Inch and 8 Inch, Short Pattern, Seat Leakage as per ISO 5208, Shaft: A182 Gr. F53, Seat: HardFace, Sealing: F53 + RPTFE, Design temperature - 52 Deg. C, Packing: RPTFE, Service: Sea Water

Specification:
Product Name: Eccentric Butterfly Valve
Standard: API 609
Material: ASTM A995 5A
Size: DN150, 6 Inch; DN200, 8 Inch
Pressure: PN50, Class 300 LB
Sealing: F53 + RPTFE
Shaft: ASTM A182 F53
Seat: Hard Face
Packing: RPTFE
