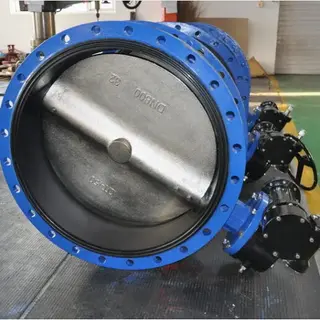

API 609 Butterfly Valves, ASTM A536 65-45-12, 2-32 IN, Flanged
API 609 Butterfly Valves, ASTM A536 65-45-12, 2-32 IN, Flanged
Key Specifications / Features
 Model No.: LV-BTV-20241026-01    Hits: 1
Our Ductile Iron Butterfly Valves, manufactured in China, meet API 609 standards and are made from ASTM A536 Grade 65-45-12. Available in sizes from 2 to 32 inches, these valves accommodate pressure ratings of 175, 200, 250, and 300 PSI. Designed with flanged ends for straightforward installation, they are finished with a fusion-bonded epoxy coating, providing excellent corrosion resistance and ensuring long-lasting durability.
Request a quoteShare
Tags: API 609 Butterfly Valve, Ductile Iron Butterfly Valve, ASTM A536 65-45-12 Butterfly Valve,
Previous: Ductile Iron Wafer Butterfly Valve, EN 593, 2-12 IN, 150 LB
Next: ASTM A536 65-45-12 Butterfly Valve, MSS SP-67, 2-12 Inch

Detail Information

ASTM A536 65-45-12 Butterfly Valves, Ductile Iron, Flanged Ends.

Product Item: API 609 Flanged Butterfly Valve
Design Standard: API 609
Size Range: 2 Inch - 32 Inch
Body Material: Ductile Iron ASTM A536 Grade 65-45-12
Working Pressure: 250 PSI, 175 PSI, 200 PSI and 300 PSI, available upon Request
Face to Face: EN 558 Series 13
Top Flange Standard: ISO 5211
Connection Ends: ASME B16.1 Class 125 LB
Temperature Range: 0°C to 80°C
Coating: Fusion Bonded Epoxy Coating per ANSI/AWWA C550
Stem Drive by Keys, Parallel or Diagonal Square or Flat Head

Drawing for ASTM A536 65-45-12 Butterfly Valve

Material Specification for ASTM A536 65-45-12 Butterfly Valve
