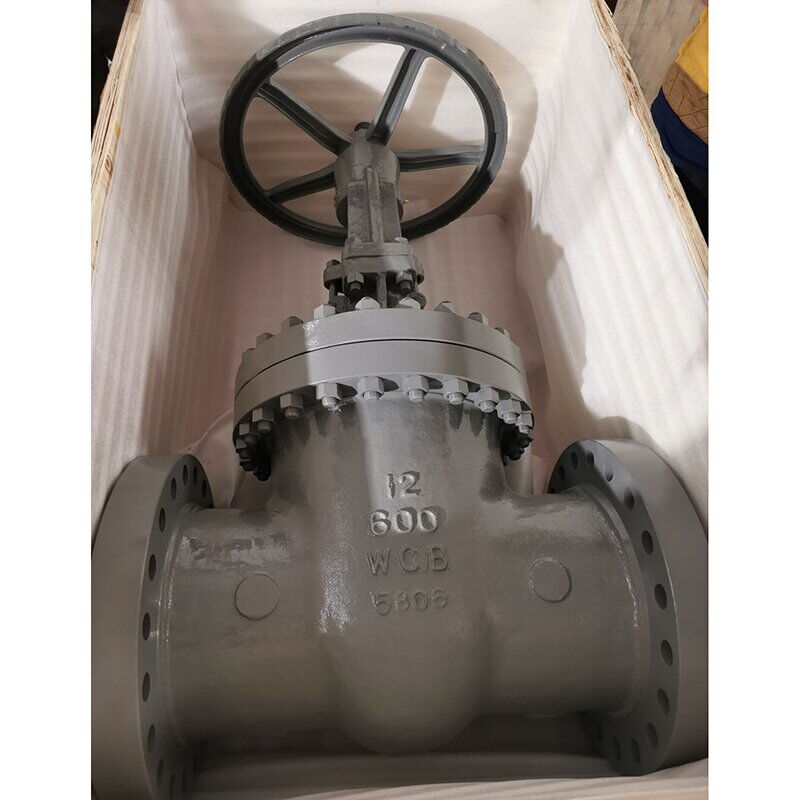

API 600 Steam Gate Valves, A216 WCB, 12 IN, 600 LB, BB, RF
Key Specifications / Features
 Model No.: LV-GTV-20250417-05    Hits: 5
We are a leading steam gate valve factory in China, offering high-performance valves built to API 600 standards. This 12-inch gate valve is rated for Class 600 LB and features a robust ASTM A216 WCB carbon steel body. It is equipped with a corrosion-resistant SS 316 stem, and both the disc and seat are made of SS 316 with Stellite (STL) overlay for enhanced durability under high-temperature steam service. The valve includes a bolted bonnet, OS&Y design, and RF flanged ends for secure, reliable connections in demanding industrial applications.

Detail Information

Carbon Steel Gate Valves, DN300, PN100, RF Flanged.

Product Name: ASTM A216 WCB Gate Valve, Steam Valve
Structure: Bolted Bonnet, Outside Screw and Yoke (OS&Y)
Standard: API 600
Body Material: Carbon Steel ASTM A216 WCB
Size: 12 Inch, DN300
Pressure: Class 600 LB, PN100
Connection End: RF Flanged
Face-to-Face Dimension: 838 mm
Stem Material: SS 316
Disc Material: SS 316 + STL
Seat Material: SS 316 + STL
Max Temperature: 797°F / 425°C
Operation: Handwheel Operated
