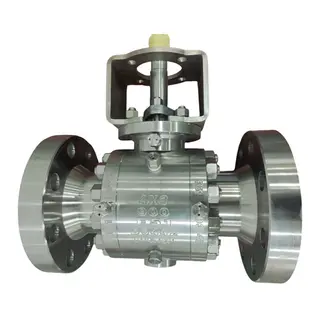

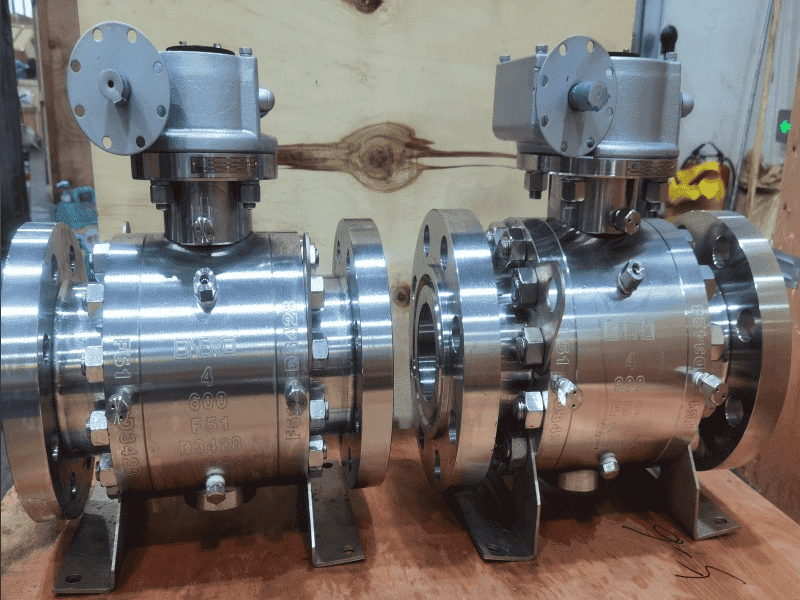

A182 F51 Duplex Steel Ball Valve, API 6D, 4 IN, CL 600 LB
Key Specifications / Features
 Model No.: LV-BV-20240824    Hits: 9
As a leading trunnion-type ball valve manufacturer in China, we provide high-quality valves designed to meet API 6D standards. Our 4-inch (DN100) valve, made from duplex stainless steel ASTM A182 F51, offers superior strength and corrosion resistance. Rated for Class 600 LB (PN100) pressure, it features a full bore design for optimal flow. Certified to NACE MR0175 and ISO 15156, it is engineered to withstand harsh environments and prevent corrosion. Ideal for demanding applications, our trunnion ball valves ensure reliable performance and durability, meeting the rigorous requirements of the industry.

Detail Information

Product Item: API 6D Ball Valve
Type: Forged Duplex Stainless Steel Ball Valve, Full Bore, Trunnion Type
Standard: API 6D
Body and Ball Material: ASTM A182 F51
Size: 4 Inch, DN100
Class Rate: Class 600 LB, PN100
Seat Material: Peek
NACE Requirement: MR0175, ISO 15156
Ends: RF Flanged
Temperature: -20°C to +200°C
